Type: Semi Hex body, Large Flange Head, Closed End
Material: Stainless Steel
Material: Stainless Steel

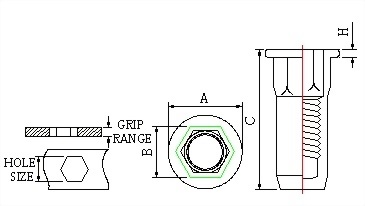

Specification
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| SS.HB4-CL | M4x0.7 | 0.5-2.5 | 6.00 | 9.30 | 5.97 | 16.50 | 1.00 |
| SS.HB5-CL | M5x0.8 | 0.5-3.0 | 7.00 | 10.00 | 6.97 | 19.00 | 1.00 |
| SS.HB6-CL | M6X1.0 | 0.5-3.0 | 9.00 | 12.00 | 8.97 | 22.50 | 1.50 |
| SS.HB8-CL | M8X1.25 | 0.5-3.0 | 11.00 | 15.00 | 10.97 | 25.50 | 1.50 |
