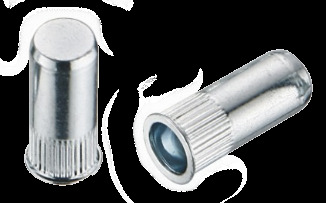

Type：Round Knurled body, Reduced Head, Closed End.
Material：Steel
Material：Steel
Specification

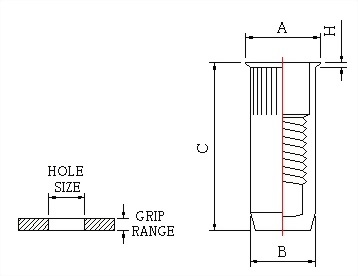

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| ME4F-CL | M4x0.7 | 0.5-2.0 | 6.00 | 6.80 | 5.97 | 15.00 | 0.45 |
| ME5F-CL | M5x0.8 | 0.5-3.0 | 7.00 | 8.00 | 6.97 | 18.00 | 0.50 |
| ME6F-CL | M6X1.0 | 0.7-3.0 | 9.00 | 9.90 | 8.97 | 21.50 | 0.50 |
| ME8F-CL | M8X1.25 | 0.5-3.0 | 11.00 | 12.00 | 10.97 | 22.50 | 0.50 |
| ME10F-CL | M10X1.5 | 1.0-4.5 | 13.00 | 14.10 | 12.97 | 28.00 | 0.60 |
| ME10F-CL | M10X1.5 | 3.0-6.0 | 13.00 | 14.50 | 12.97 | 33.50 | 0.85 |
