Type: Full Hex body, Reduced Head, Closed End
Material: Steel
Material: Steel

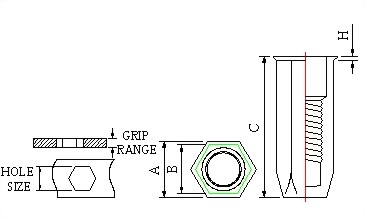

Specification
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| HE4-CL | M4x0.7 | 0.5-2.5 | 6.00 | 6.90 | 5.97 | 16.00 | 0.50 |
| HE5-CL | M5x0.8 | 0.5-3.0 | 7.00 | 8.00 | 6.97 | 20.00 | 0.60 |
| HE6-CL | M6X1.0 | 0.5-3.0 | 9.00 | 10.00 | 8.97 | 22.00 | 0.60 |
| HE8-CL | M8X1.25 | 0.7-3.5 | 11.00 | 12.00 | 10.97 | 25.50 | 0.60 |
| HE8-CL | M8X1.25 | 3.0-6.0 | 11.00 | 12.00 | 10.97 | 28.00 | 0.60 |
