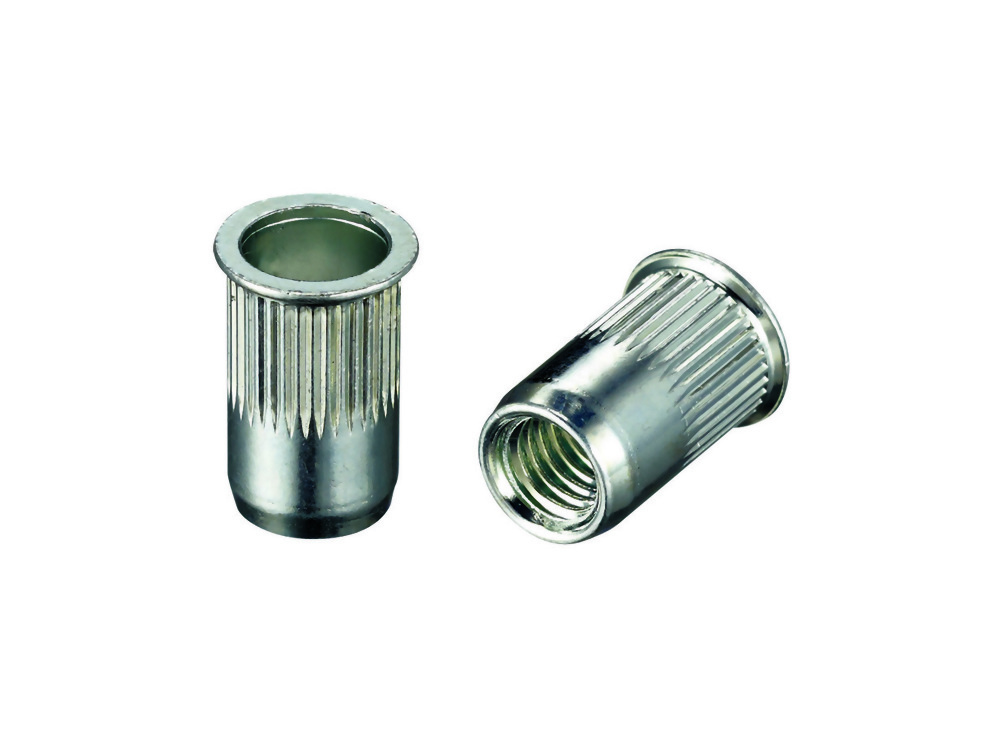

Type: Round Knurled body, Reduced Head, Open End
Material: Steel
Material: Steel

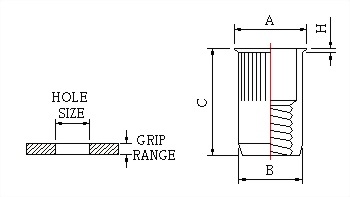

Specification
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| MA3F | M3x0.5 | 0.5-1.5 | 4.80 | 5.30 | 4.72 | 8.80 | 0.40 |
| MA4F | M4x0.7 | 0.5-2.0 | 6.35 | 7.20 | 6.35 | 10.40 | 0.45 |
| MA5F | M5x0.8 | 0.5-3.0 | 7.11 | 8.10 | 7.10 | 12.00 | 0.50 |
| MA8F | M8X1.25 | 0.7-3.0 | 10.60 | 11.50 | 10.50 | 16.00 | 0.50 |
