Type: Round Knurled body, Countersunk Head, Open End
Material: Stainless Steel
Material: Stainless Steel
Specification

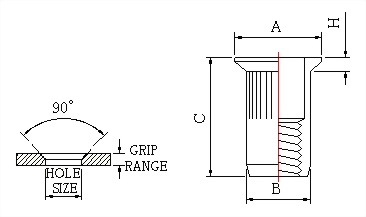

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| SS.GS4-35R | M4x0.7 | 1.5-3.5 | 6.00 | 8.50 | 5.97 | 11.50 | 1.50 |
| SS.GS5-40R | M5x0.8 | 1.5-4.0 | 7.00 | 9.60 | 6.97 | 13.50 | 1.50 |
| SS.GS6-45R | M6X1.0 | 1.5-4.5 | 9.00 | 11.60 | 8.97 | 16.00 | 1.50 |
| SS.GS8-45R | M8X1.25 | 1.5-4.5 | 11.00 | 13.50 | 10.97 | 18.50 | 1.50 |
| SS.GS10-45R | M10X1.5 | 1.5-4.5 | 13.00 | 15.50 | 12.97 | 21.00 | 1.50 |
