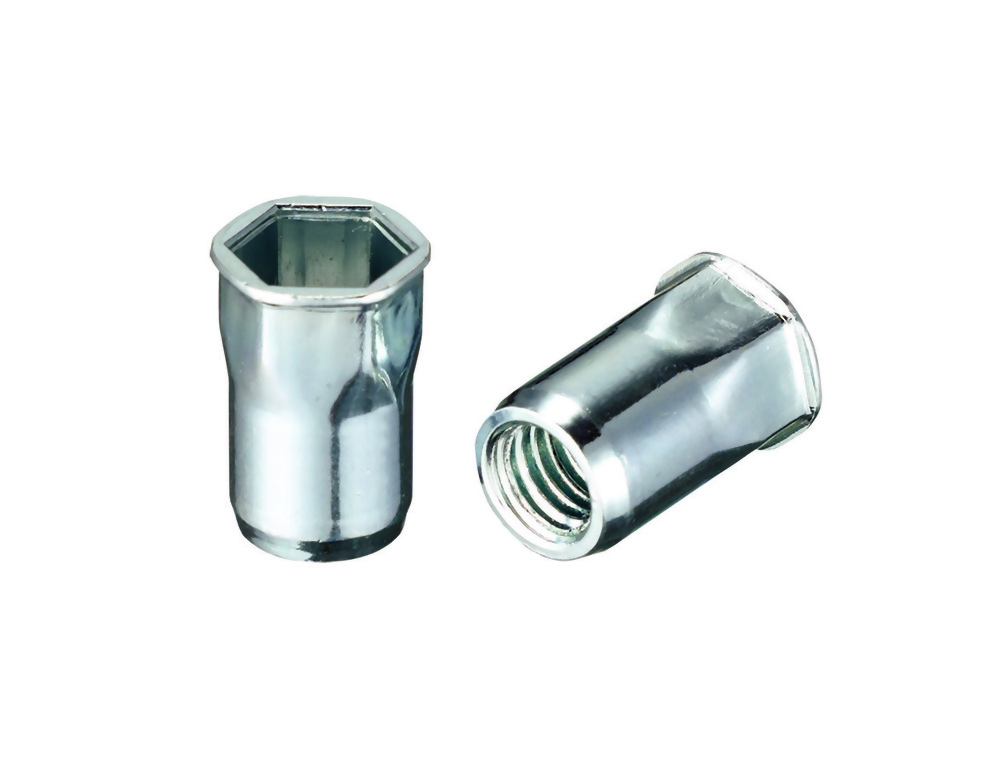

Type: Semi Hex body, Reduced Head, Open End
Material: Steel
Material: Steel
Specification

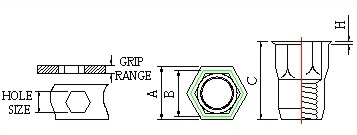

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| HA4 | M4x0.7 | 0.5-2.5 | 6.40 | 7.00 | 6.35 | 10.40 | 0.40 |
| HA5 | M5x0.8 | 0.5-3.0 | 7.11 | 8.10 | 7.10 | 12.00 | 0.50 |
| HA6 | M6X1.0 | 0.7-3.2 | 9.60 | 10.50 | 9.50 | 14.50 | 0.50 |
| HA6 | M6X1.0 | 3.0-5.0 | 9.60 | 10.50 | 9.50 | 16.00 | 0.50 |
| HA8 | M8X1.25 | 0.7-3.2 | 10.60 | 11.50 | 10.50 | 16.00 | 0.50 |
| HA10 | M10X1.5 | 1.0-3.5 | 12.70 | 14.00 | 12.69 | 18.80 | 0.60 |
| HA10 | M10X1.5 | 1.0-4.0 | 12.70 | 14.00 | 12.69 | 22.50 | 0.60 |
