Type: Round Knurled body, Large Flange Head, Open End
Material: Aluminum
Material: Aluminum

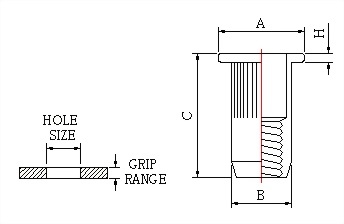

Specification
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| A.MF3 | M3x0.5 | 0.5-2.0 | 5.00 | 8.00 | 4.97 | 10.50 | 0.70 |
| A.MF4 | M4x0.7 | 0.5-2.5 | 6.00 | 9.00 | 5.97 | 11.00 | 0.80 |
| A.MF5 | M5x0.8 | 0.5-3.0 | 7.00 | 10.00 | 6.97 | 13.00 | 1.00 |
| A.MF6 | M6X1.0 | 0.7-3.0 | 9.00 | 13.00 | 8.97 | 16.50 | 1.50 |
| A.MF8 | M8X1.25 | 0.7-3.0 | 11.00 | 16.00 | 10.97 | 18.00 | 1.50 |
| A.MF10 | M10X1.5 | 1.0-4.5 | 13.00 | 19.00 | 12.97 | 24.00 | 2.00 |

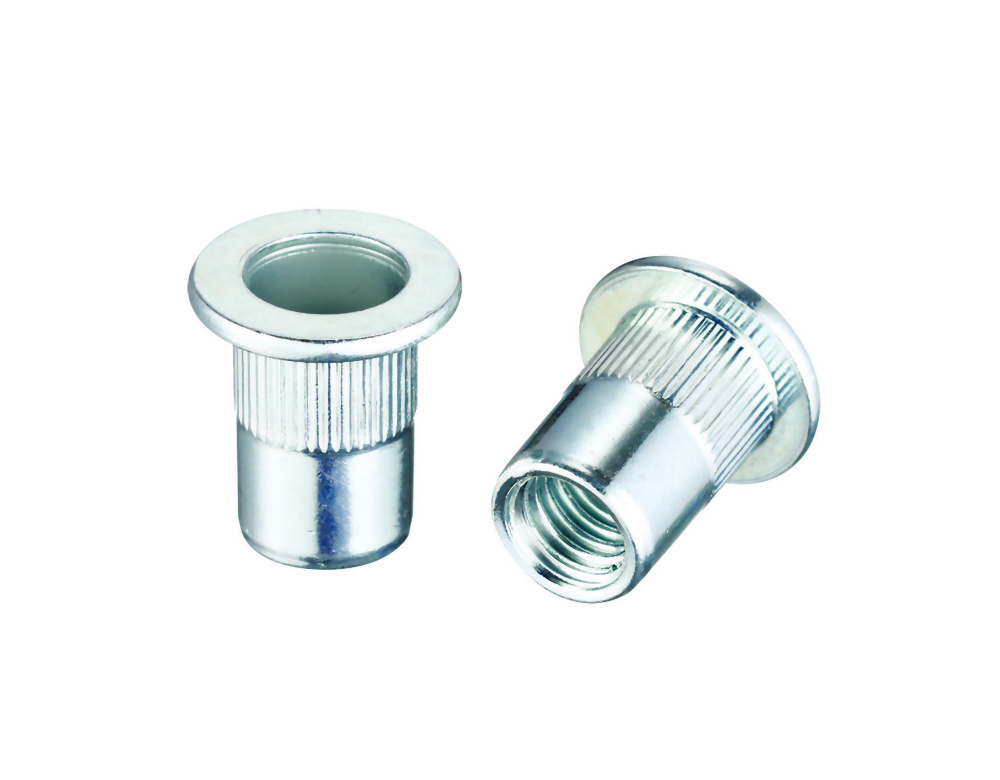

MF Series Aluminum Knurled Rivet Nut with Large Flange
The MF Series aluminum knurled rivet nut features a round knurled body, large flange head, and open-end design for reliable fastening in thin materials with one-side access.
Round Knurled Body and Large Flange
The knurled body helps reduce rotation, while the large flange provides a wider bearing surface for stable installation.
Lightweight Aluminum Construction
Made from aluminum, the MF Series combines low weight, corrosion resistance, and dependable fastening performance.
Sizes and Grip Ranges
Available in M3 to M10 thread sizes with multiple grip ranges and hole sizes for different panel thicknesses.
Request Specifications and Pricing
Contact us for specifications, samples, pricing, and custom requirements.
FAQ
Q: Which rivet nut has a round knurled body and large flange?
A: The MF Series features a round knurled body, large flange, and open-end design.
Q: Which rivet nut helps reduce rotation after installation?
A: The MF Series knurled body helps improve grip and reduce unwanted rotation.
Q: What sizes are available for the MF Series?
A: The MF Series is available in M3 to M10 with multiple grip ranges.
