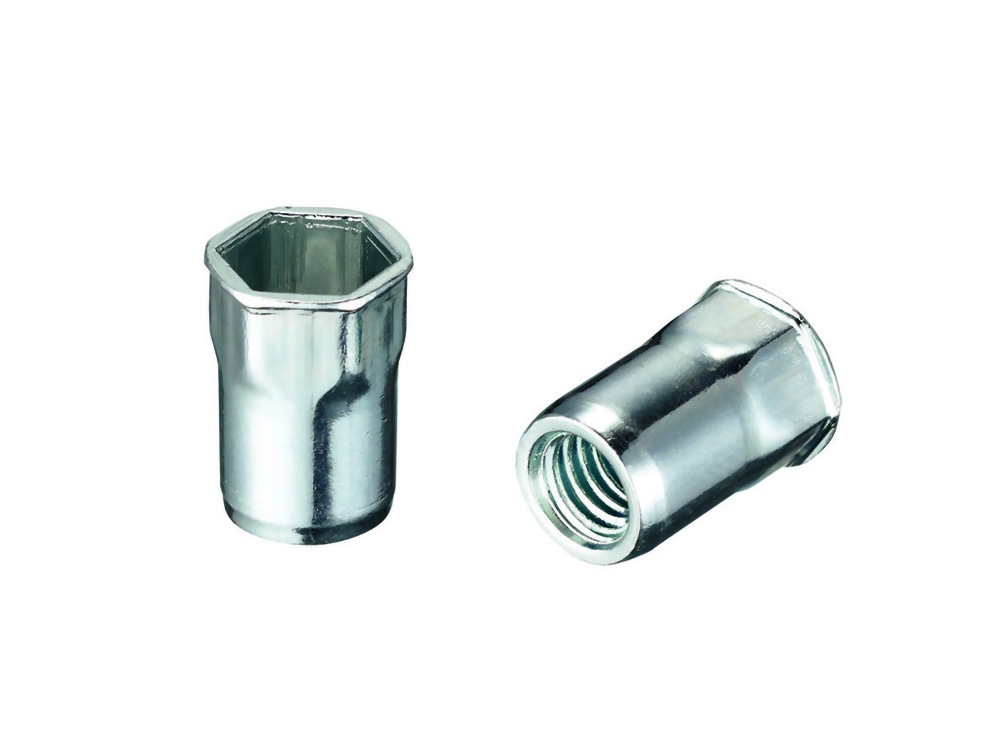

Type: Semi Hex body, Reduced Head, Open End
Material: Steel
Material: Steel
Specification

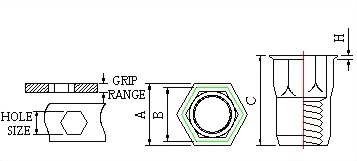

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| HD3 | M3x0.5 | 1.5-3.0 | 5.00 | 5.80 | 4.97 | 10.00 | 0.50 |
| HD4 | M4x0.7 | 0.5-2.0 | 6.00 | 6.80 | 5.97 | 10.50 | 0.40 |
| HD5 | M5x0.8 | 0.5-3.0 | 7.00 | 8.00 | 6.97 | 11.70 | 0.50 |
| HD6 | M6X1.0 | 0.5-3.0 | 9.00 | 10.00 | 8.97 | 14.50 | 0.50 |
| HD8 | M8X1.25 | 0.5-3.0 | 11.00 | 12.00 | 10.97 | 16.50 | 0.50 |
| HD10 | M10X1.5 | 1.0-3.5 | 13.00 | 14.00 | 12.97 | 20.00 | 0.80 |
| HD10 | M10X1.5 | 3.5-6.0 | 13.00 | 14.00 | 12.97 | 24.00 | 0.80 |
