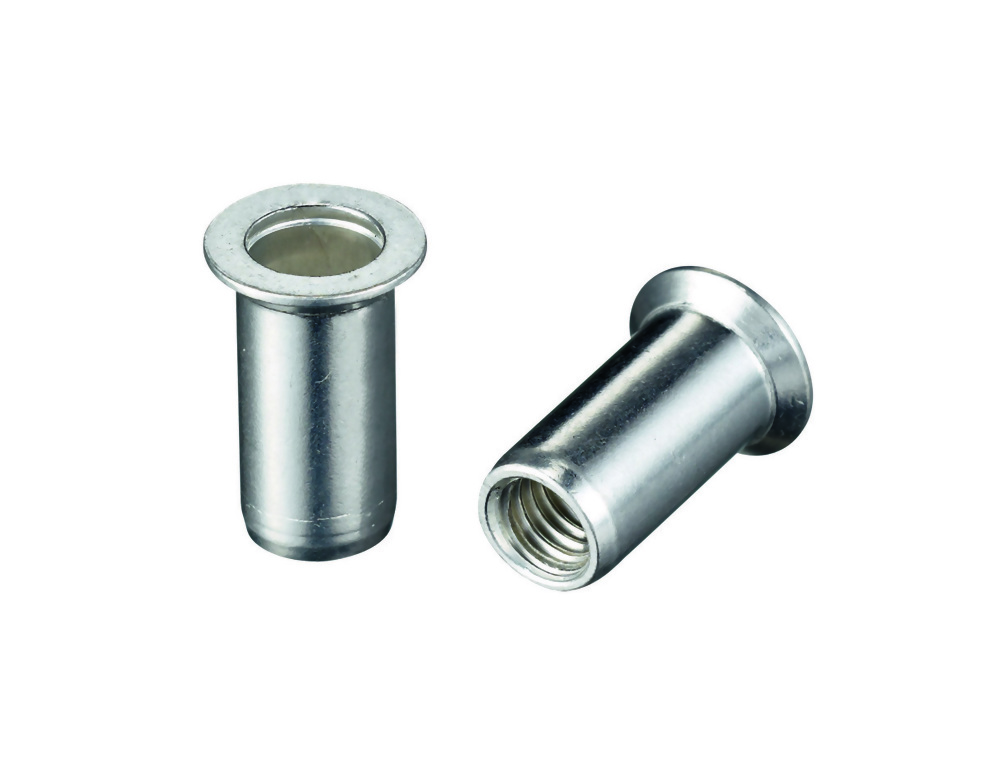

Type: Round body, Countersunk Head, Open End
Material: Steel
Material: Steel
Specification

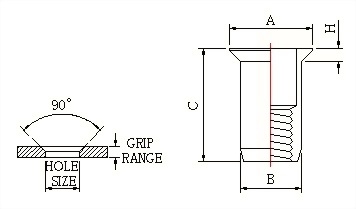

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| GS5-55 | M5x0.8 | 4.0-5.5 | 7.00 | 9.50 | 6.97 | 14.50 | 1.50 |
| GS3-25 | M3x0.5 | 1.5-2.5 | 5.00 | 6.50 | 4.97 | 10.50 | 1.00 |
| GS4-35 | M4x0.7 | 1.5-3.5 | 6.00 | 8.50 | 5.97 | 11.50 | 1.50 |
| GS4-50 | M4x0.7 | 3.5-5.0 | 6.00 | 8.50 | 5.97 | 13.00 | 1.50 |
| GS5-40 | M5x0.8 | 1.5-4.0 | 7.00 | 9.50 | 6.97 | 13.00 | 1.50 |
| GS6-60 | M6X1.0 | 4.5-6.0 | 9.00 | 11.50 | 8.97 | 17.50 | 1.50 |
| GS6-45 | M6X1.0 | 1.5-4.5 | 9.00 | 11.50 | 8.97 | 16.00 | 1.50 |
| GS8-45 | M8X1.25 | 1.5-4.5 | 11.00 | 13.50 | 10.97 | 18.50 | 1.50 |
| GS8-60 | M8X1.25 | 4.5-6.0 | 11.00 | 13.50 | 10.97 | 20.00 | 1.50 |
| GS12-45 | M12X1.75 | 1.8-4.5 | 16.00 | 19.00 | 15.97 | 26.00 | 1.80 |
| GS10-60 | M10X1.5 | 4.5-6.0 | 13.00 | 15.50 | 12.97 | 23.50 | 1.50 |
| GS10-45 | M10X1.5 | 3.0-4.5 | 13.00 | 15.50 | 12.97 | 22.00 | 1.50 |
| GS10-30 | M10X1.5 | 1.5-3.0 | 13.00 | 15.50 | 12.97 | 20.50 | 1.50 |
