Specification

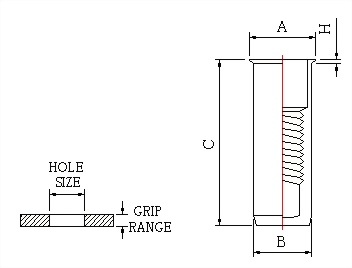

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| MA4-CL | M4x0.7 | 0.5-2.0 | 6.35 | 7.20 | 6.35 | 15.00 | 0.45 |
| MA5-CL | M5x0.8 | 0.5-3.0 | 7.11 | 8.10 | 7.10 | 20.20 | 0.50 |
| MA6-CL | M6X1.0 | 0.7-3.0 | 9.60 | 10.50 | 9.50 | 23.50 | 0.50 |
| MA8-CL | M8X1.25 | 0.7-3.0 | 10.60 | 11.50 | 10.50 | 23.00 | 0.50 |
