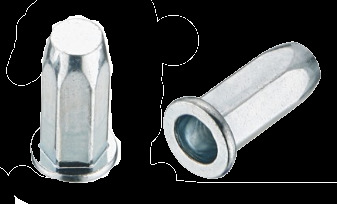

Type: Full Hex body, Large Flange Head, Closed End
Material: Steel
Material: Steel

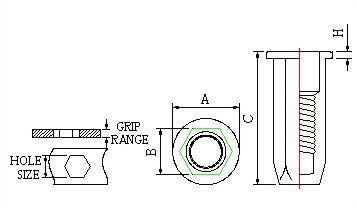

Specification
| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| HH4-CL | M4x0.7 | 0.5-2.5 | 6.00 | 9.00 | 5.97 | 16.00 | 1.00 |
| HH5-CL | M5x0.8 | 0.5-3.0 | 7.00 | 10.00 | 6.97 | 20.00 | 1.00 |
| HH6-CL | M6X1.0 | 0.5-3.0 | 9.00 | 13.00 | 8.97 | 23.00 | 1.50 |
| HH8-CL | M8X1.25 | 0.5-3.0 | 11.00 | 16.00 | 10.97 | 26.50 | 1.50 |
| HH8-CL | M8X1.25 | 3.0-5.5 | 11.00 | 16.00 | 10.97 | 28.50 | 1.50 |
