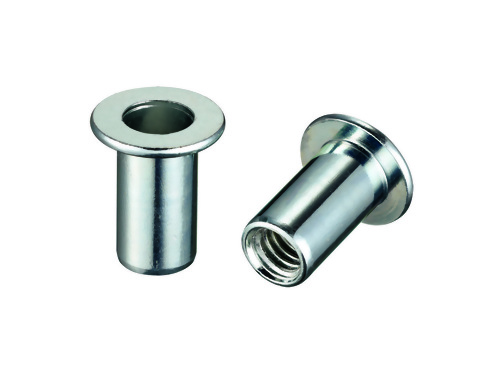

Type: Round Knurled body, Large Flange Head, Closed End
Material: Steel
Material: Steel
Specification

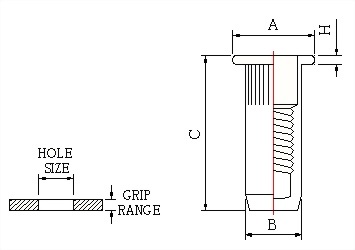

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| MF4-CL | M4x0.7 | 0.5-2.5 | 6.00 | 9.00 | 5.97 | 16.50 | 0.80 |
| MF5-CL | M5x0.8 | 0.5-3.0 | 7.00 | 10.00 | 6.97 | 19.00 | 1.00 |
| MF6-CL | M6X1.0 | 0.7-3.0 | 9.00 | 13.00 | 8.97 | 23.00 | 1.50 |
| MF8-CL | M8X1.25 | 0.7-3.0 | 11.00 | 16.00 | 10.97 | 26.00 | 1.50 |
| MF10-CL | M10X1.5 | 1.0-4.5 | 13.00 | 19.00 | 12.97 | 30.00 | 2.00 |
