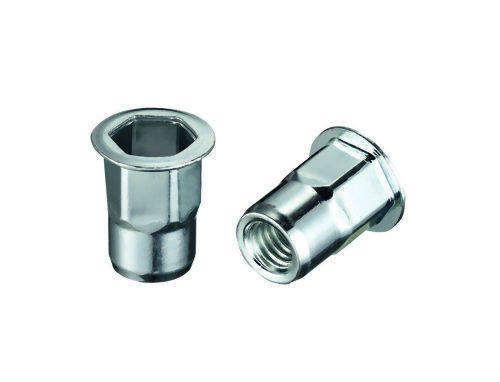

Type: Semi Hex body, Reduced Head, Closed End
Material: Steel
Material: Steel
Specification

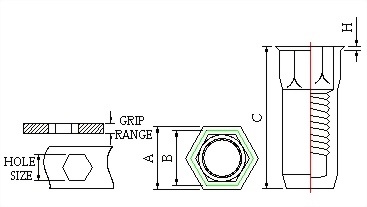

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| HD4-CL | M4x0.7 | 0.5-2.0 | 6.00 | 7.00 | 5.97 | 16.00 | 0.50 |
| HD5-CL | M5x0.8 | 0.5-3.0 | 7.00 | 8.00 | 6.97 | 18.20 | 0.50 |
| HD6-CL | M6X1.0 | 0.5-3.0 | 9.00 | 10.00 | 8.97 | 21.20 | 0.50 |
| HD8-CL | M8X1.25 | 0.5-3.0 | 11.00 | 12.00 | 10.97 | 24.00 | 0.60 |
