Specification

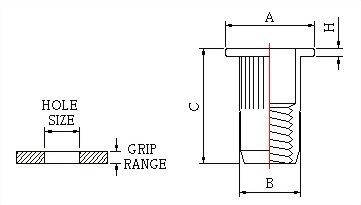

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| MF3-E | M3x0.5 | 0.5-2.0 | 5.00 | 8.00 | 4.97 | 10.50 | 0.70 |
| MF5-E | M5x0.8 | 0.5-3.0 | 7.00 | 10.00 | 6.97 | 13.00 | 1.00 |
| MF6-E | M6X1.0 | 0.5-3.0 | 9.00 | 13.00 | 8.97 | 16.00 | 1.50 |
| MF8-E | M8X1.25 | 0.5-3.0 | 11.00 | 16.00 | 10.97 | 17.50 | 1.50 |
