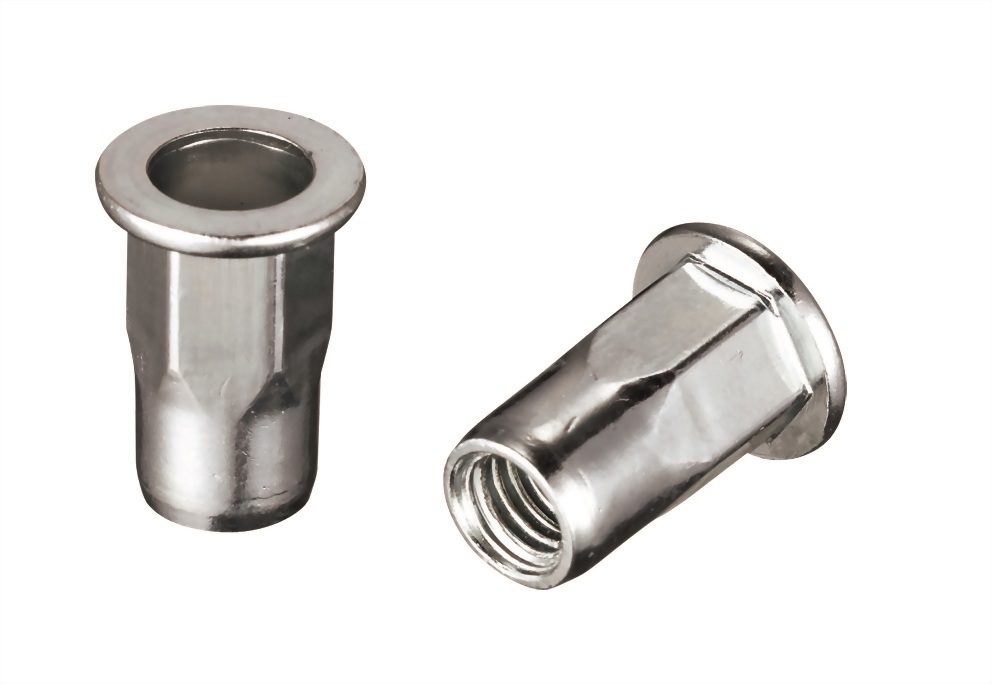

Type: Semi Hex body, Large Flange Head, Open End
Material: Steel
Material: Steel
Specification

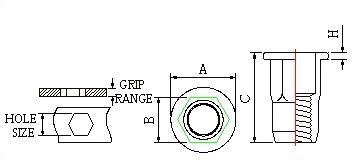

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| HB4 | M4x0.7 | 0.5-2.5 | 6.00 | 9.00 | 5.97 | 11.00 | 0.80 |
| HB5 | M5x0.8 | 0.5-3.0 | 7.00 | 10.00 | 6.97 | 13.80 | 1.00 |
| HB8 | M8X1.25 | 0.5-3.0 | 11.00 | 16.00 | 10.97 | 18.00 | 1.50 |
| HB10 | M10X1.5 | 0.5-3.0 | 13.00 | 19.00 | 12.97 | 21.00 | 2.00 |
| HB10 | M10X1.5 | 1.0-4.5 | 13.00 | 19.00 | 12.97 | 24.00 | 2.00 |
