Type: Round Knurled body, Small Flange Thin Wall, Closed End
Material: Steel
Material: Steel
Specification

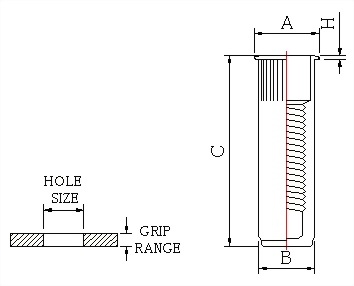

| PART NO. | THREAD SIZE | GRIP RANGE | HOLE SIZE | A | B max | C | H |
|---|---|---|---|---|---|---|---|
| KN4-CL | M4x0.7 | 0.5-2.0 | 6.75 | 7.87 | 6.73 | 19.30 | 0.48 |
| KN4-CL | M4x0.7 | 2.0-3.3 | 6.75 | 7.87 | 6.73 | 19.30 | 0.48 |
| KN5-CL | M5x0.8 | 0.5-3.3 | 7.60 | 8.64 | 7.52 | 25.60 | 0.48 |
| KN5-CL | M5x0.8 | 3.3-5.7 | 7.60 | 8.64 | 7.52 | 25.60 | 0.48 |
| KN6-CL | M6X1.0 | 1.0-4.0 | 10.00 | 11.50 | 9.91 | 30.78 | 0.55 |
| KN6-CL | M6X1.0 | 4.2-6.6 | 10.00 | 11.50 | 9.91 | 30.78 | 0.55 |
| KN8-CL | M8X1.25 | 0.7-3.8 | 13.50 | 15.10 | 13.46 | 35.80 | 0.55 |
| KN8-CL | M8X1.25 | 3.8-7.9 | 13.50 | 15.10 | 13.46 | 35.80 | 0.55 |
